The official CONTACT! Magazine CH601XL

Bungee Installation

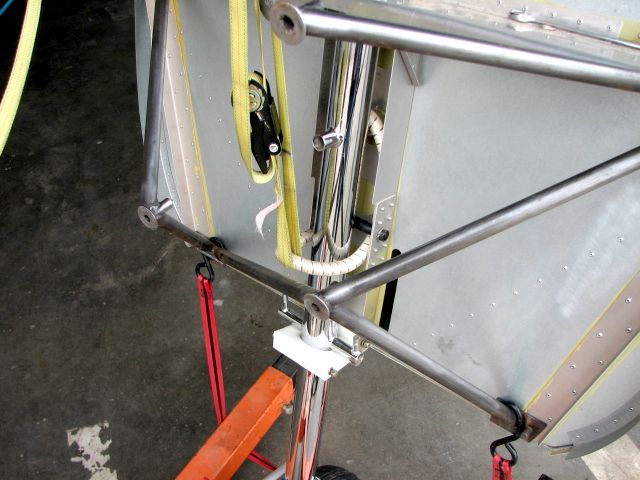

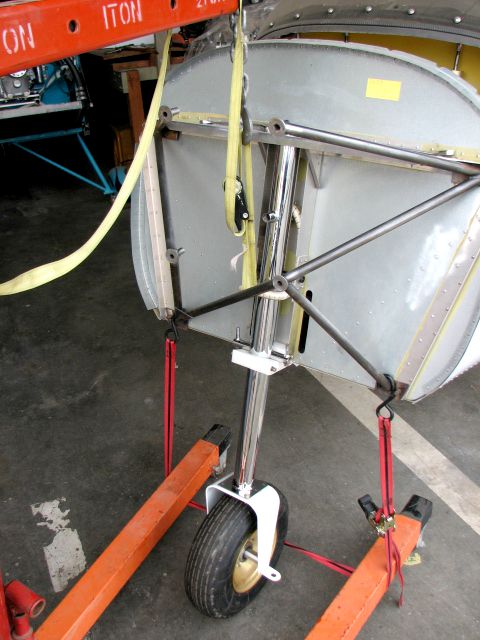

With the bottom two engine mount tubes secured to the legs of the engine hoist,
the bungee is strapped to the hoist's business end.

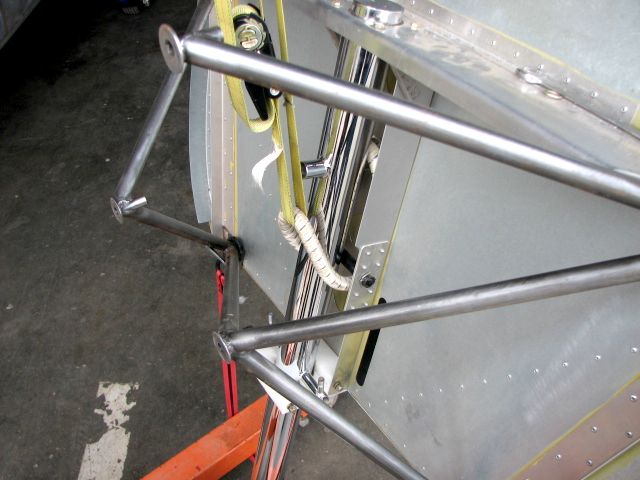

Then it's just a matter of pumping the handle of the hoist.

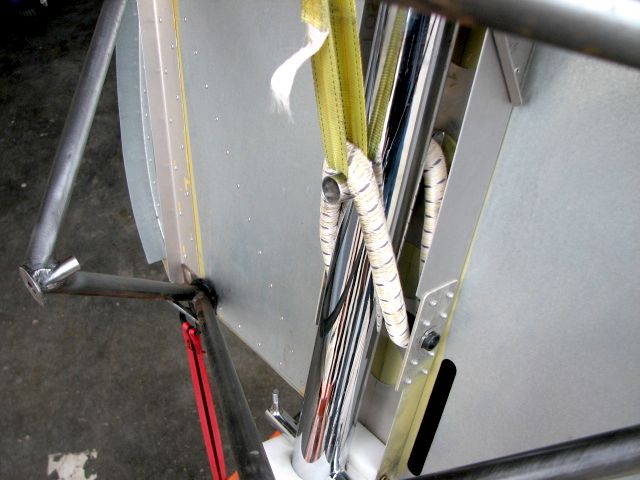

As the hoist lifts on the bungee, the straps around the legs of the hoist apply an
opposing force, allowing the bungee to stretch.





As the bungee stretches it becomes necessary to angle the cord
away from the firewall in order to get the loop over the post.





Ta-dah!

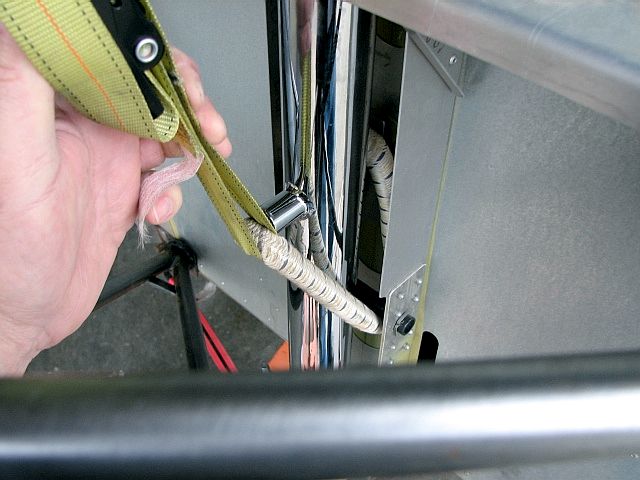

Now comes the simple task of removing the straps.

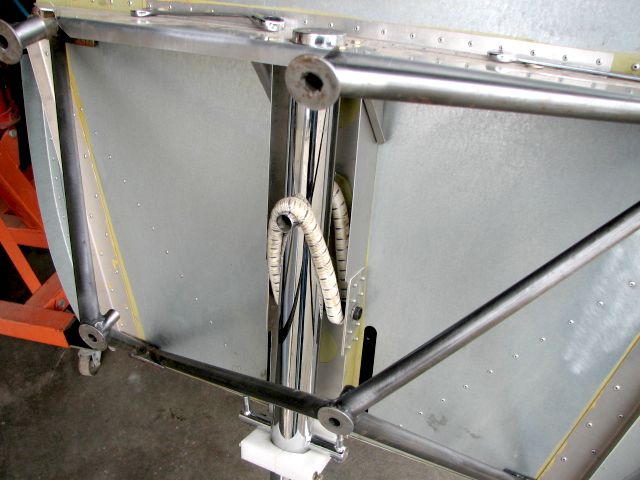

Finished.

Total time: Maybe three minutes.
Total cost: Nothing. Engine hoist and straps were on hand.
